Qi65LCRF - Fire & acoustic hood/ Styck

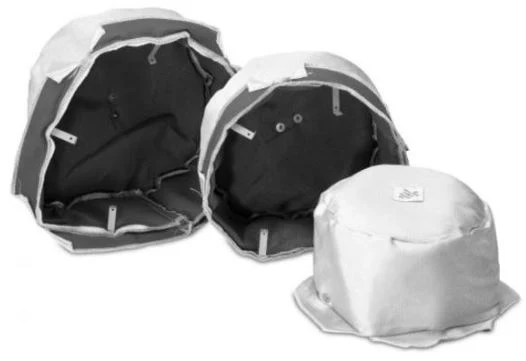

Fire & Acoustic Hoods

Model compatibility

• Qi 65 LCRF- for Qi 80LCR model

Key Features

• Legal requirement in many new builds

• Maintains integrity of the ceiling the speakers are fitted to

• Dramatically slow fire spread between floors

• Reduces rear transmission of sound by up to 10db

Specifications:

• Woven Glass Fabric: Thickness - 0.40mm, Weight/m² - 430 g/m²

• Warp count: 1360 d’tex

• Finish: Starch weave lock

SPONGE PROPERTIES:

• Physical form/appearance: Solid, voluminous material, more or less elastic.

• Specific gravity: 10-600 kg/m³

• Solubility in water: Insoluble

• Odour: None or mild odour

• Flash ignition point: Between 315ºc to 370ºc

• Decomposition temperature: Above 180ºc

• Thermal energy: 28 000 KJ/kg

• Stability and reactivity: The product is stable at temperatures between -40c and +12ºc

• Auto-ignition point: Between 370ºc to 427ºc (ASTM D 1929)

TEST DETAILS

• Complies with Part B and Part E UK building regulations

• Integrity Insulation

• Trada FR 1739 240 mins 46 mins

• BTC 10891F 88 mins N/A

EXTERNAL DIMENSIONS

• Qi 65 LCRF - Dim. 270mm x 540mm, Depth 110mm
