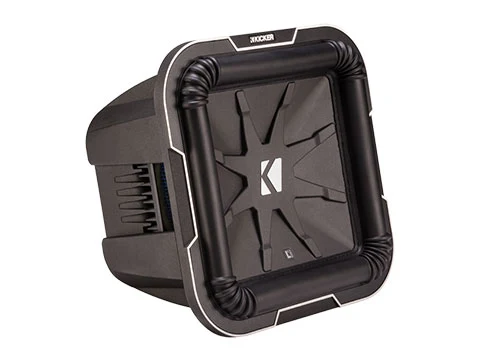

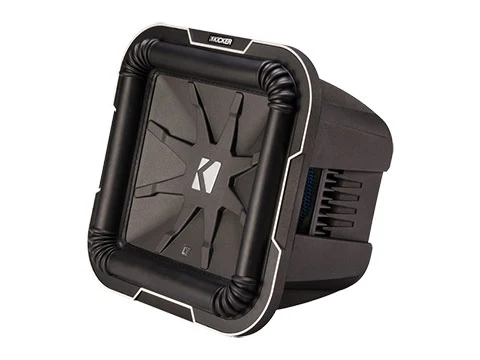

KICKER 10" Q-Class L7 Woofer L7102

10" L7 2Ω Subwoofer
The KICKER L7™ Subwoofer again reaches new heights in technology and design, capturing the imaginations of 2015 CES® Innovation Award judges and solidifying itself as the crown jewel among industry subwoofers. For more than a decade, KICKER’s square woofer earned numerous awards including several CES accolades, and the 2015 version once again makes distinctive improvements on its way to another honor.

Specifications

• Rated Impedance [Ω]: 2
• Fs [Hz]: 37.5
• Sensitivity [1W, 1m]: 85.9
• Qts: 0.507
• Qms: 9.791
• Qes: 0.535
• Re [Ω]: 7.9
• Vas [ft³, L]: 1, 28.32
• Continuous Power Handling [Watts RMS]: 750
• Outer Frame Dimension [in, cm]: 10-11/16, 27.2
• Mounting Depth [in, cm]: 6-7/8, 17.5
• Mounting Cutout [in, cm]: 9-5/16, 23.7
• Frequency Response [Hz]: 24 - 100

Sealed Enclosure Specs

• Minimum Sealed Volume ft3 (L): .8 (22.65)
• Minimum Sealed Power Handling: 750W RMS
• Maximum Sealed Volume ft3 (L): 1.25 (35.4)
• Maximum Sealed Power Handling: 750W RMS

Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF

• Box Volume [ft³, L]: .8 (22.65)
• Panel A [in, cm]: 13.5X13.5, 34.3X34.3
• Panel B [in, cm]: 13.5x9.5, 34.3x24.13
• Panel C [in, cm]: 12x9.5, 30.5x24.13

Vented Compact

• Box Volume, ft³ (L) + port displacement: 1.25 (35.4)

• Port Opening Size, in x in (cm x cm): 2.5x11.25 (6.4x29)

• Port Length, in (cm): 19.75 (50)

• Power Handling, RMS: 750

Vented SQ

• Box Volume, ft³ (L) + port displacement: 12.25 (63.7)

• Port Opening Size, in x in (cm x cm): 3x11.25 (7.6x29)

• Port Length, in (cm): 18 (46)

• Power Handling, RMS: 750
