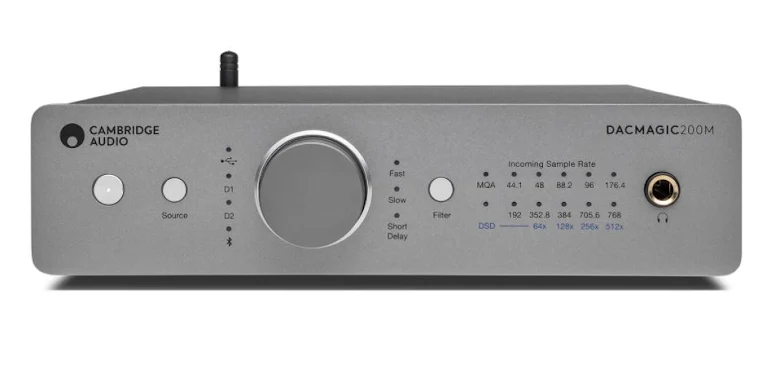

Cambridge Audio Digital Dac 200M Universal UK/EU/CU

DacMagic 200M - Digital to Analogue Converter

Dual ESS ES9028Q2M DACs - easily handles digital audio files up to 32bit/768kHz or DSD512
Supports MQA - be sure you're listening to artist-approved studio-quality audio
Digital optical, digital coaxial and USB inputs - connect CD players, games consoles, laptops or other digital audio sources
Built in Bluetooth aptX - send digital audio files from your smartphone or tablet wirelessly
Finished in Lunar Grey

The details:
DIGITAL TO ANALOGUE CONVERTERS
Dual ESS ES9028Q2M DACs

DIGITAL FILTER
Selectable, Fast – Slow – Short delay

FREQUENCY RESPONSE
10Hz to 50kHz (±1dB)

THD+N @ 1KHZ 0DBFS
<0.0005% (A-Weighted)

SIGNAL TO NOISE RATIO
>115dB (A-Weighted)

CROSSTALK @ 10KHZ
< -110dB

OUTPUT IMPEDANCE
<50 Ohms (unbal), <100 Ohm (bal)

MAX. OUTPUT LEVEL (UNBALANCED)
2.1V rms (fixed or variable – user selectable)

MAX. OUTPUT LEVEL (BALANCED)
4.2V rms (fixed or variable – user selectable)

DIGITAL INPUT WORD WIDTHS SUPPORTED
16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-32bit (USB)

DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED
44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB)

MQA COMPATIBILITY
Full decoding (Core + Renderer)

BLUETOOTH
v4.2, A2DP profile, SBC and AptX codecs

HEADPHONE OUTPUT THD+N
< 0.001% at 1kHz 0dBFS @ 100mW into 32ohm

HEADPHONE OUTPUT S/N
> 115dB (A-Weighted)

MAX OUTPUT POWER
>300mW @ 32ohm, >65mW @ 150ohm

FREQUENCY RESPONSE
10Hz - 50kHz (±1dB)

RECOMMEND HEADPHONE IMPEDANCE
10 Ohm to 600 Ohm

MAX POWER CONSUMPTION
12W

COLOUR
Lunar Grey

DIMENSIONS (HXWXD)
52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)

WEIGHT
1.2kg/2.6lbs
